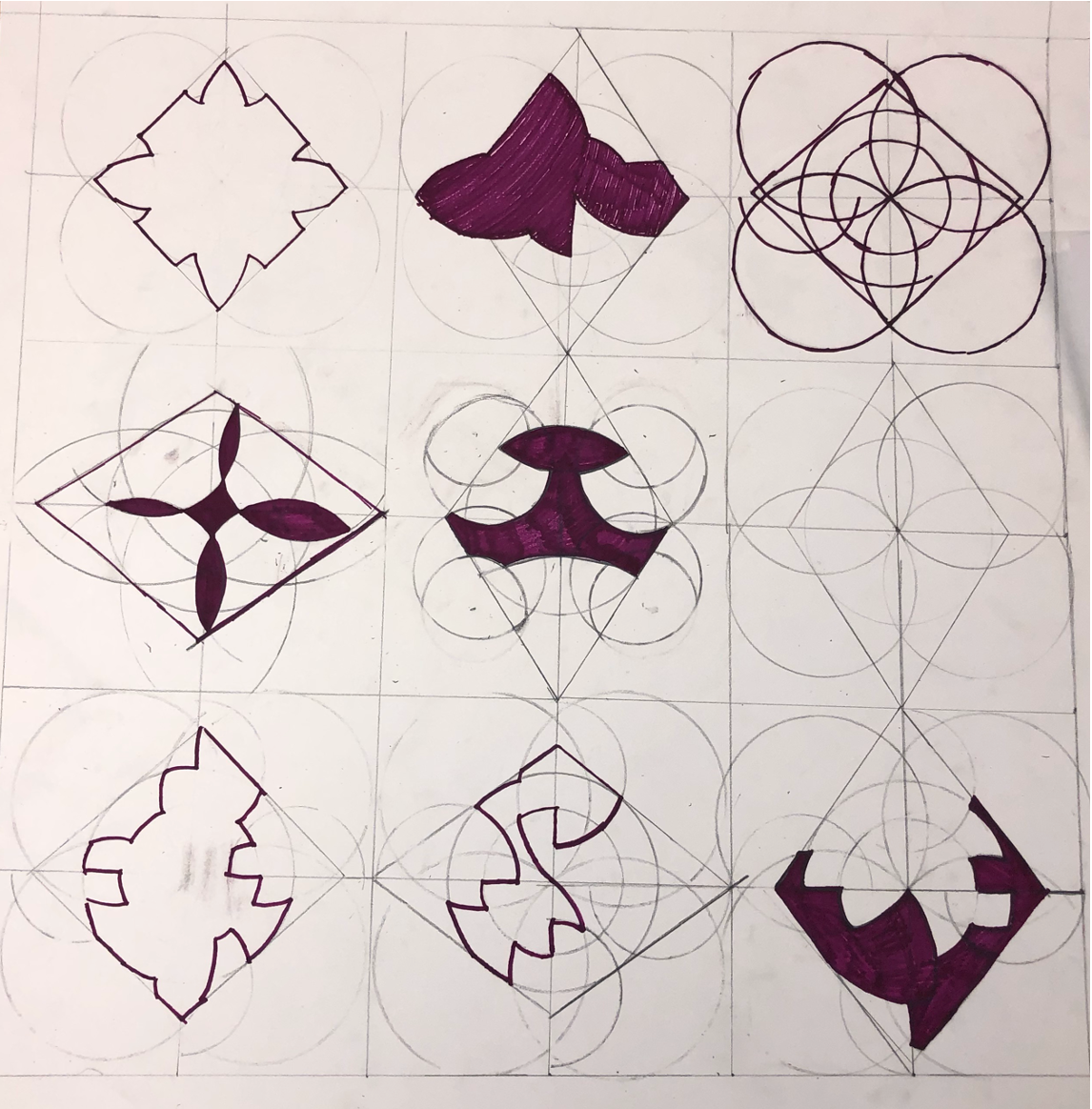

Final iteration of rules with intended results

Test group piece following rules without further guidance
Time Lapse of Final Iteration

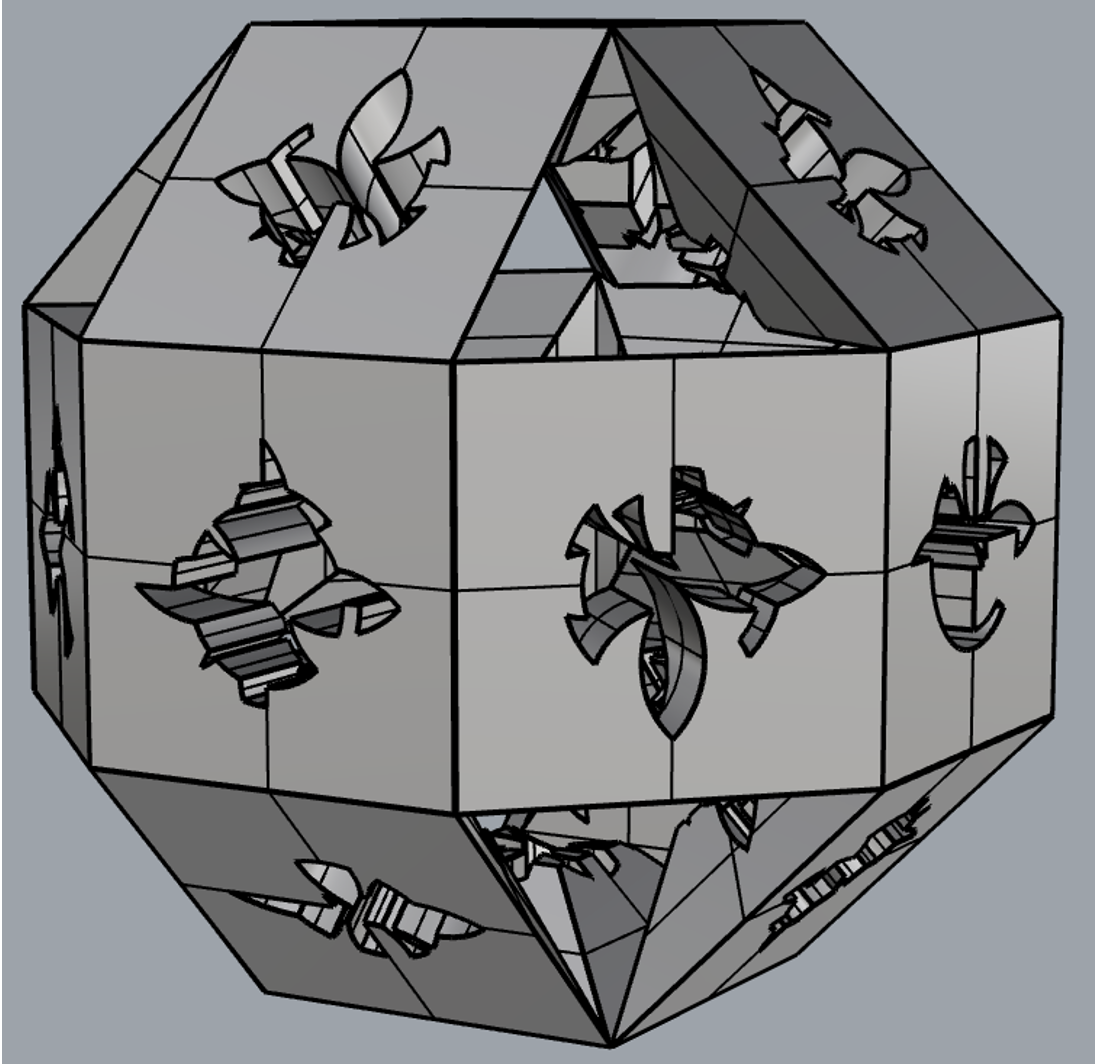

3D Model in Rhino

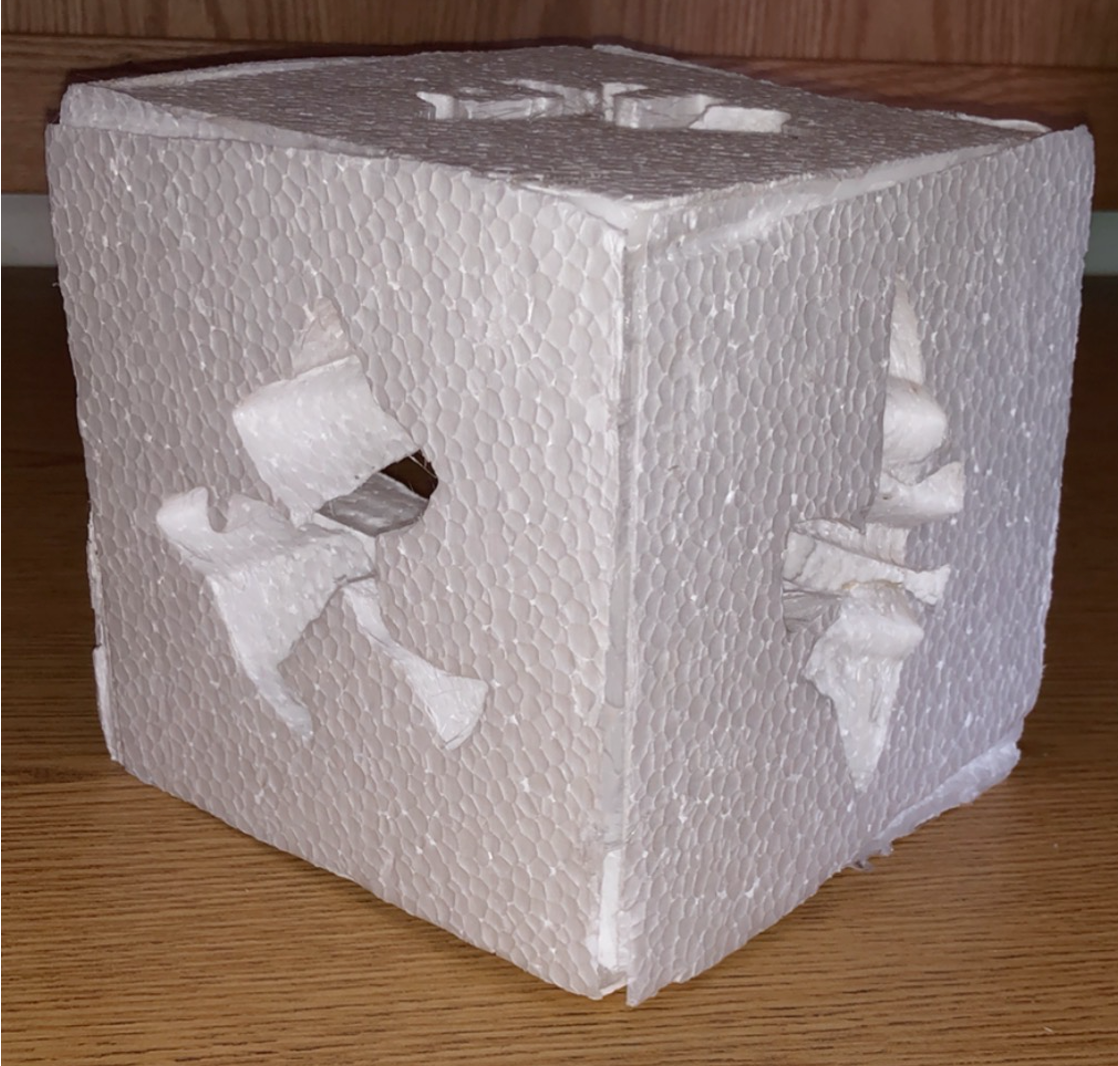

3D Styrofoam Model

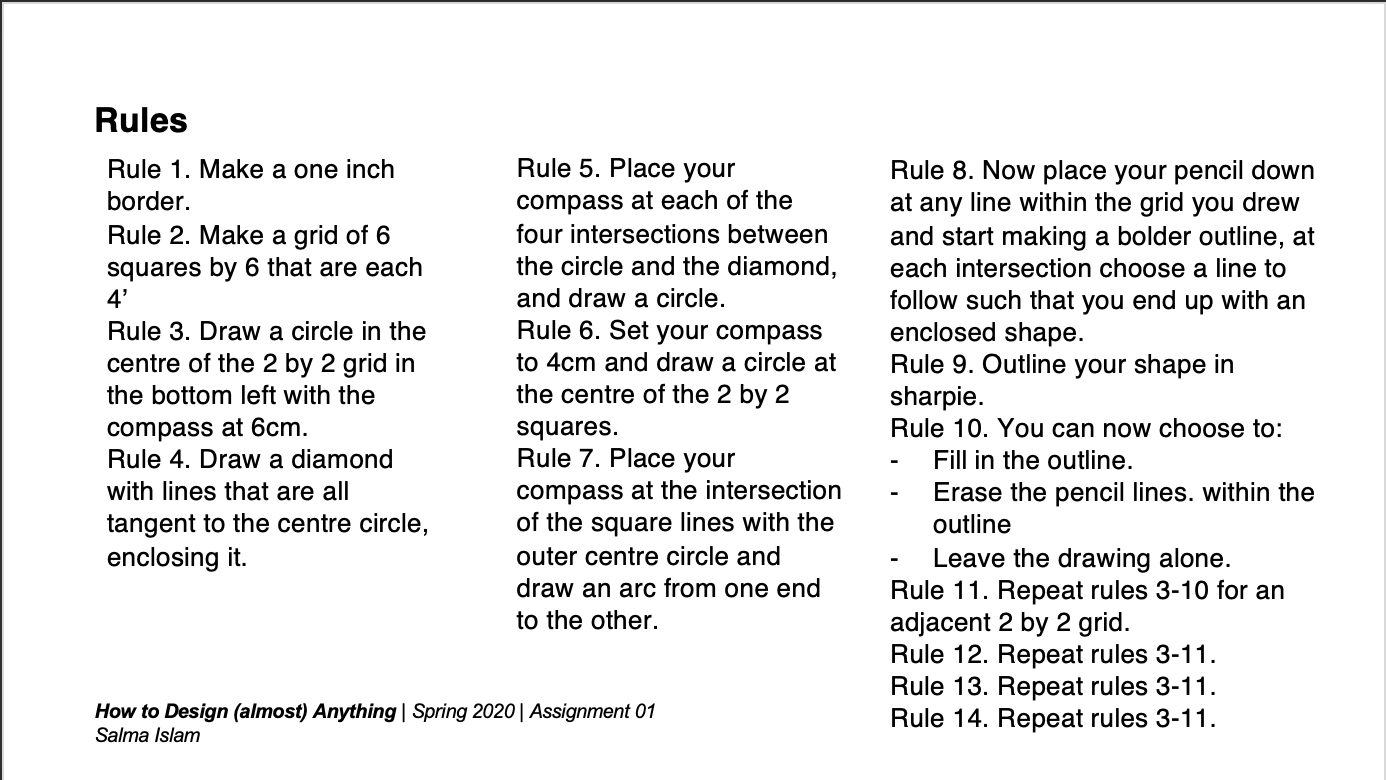

I created a design that could be replicated based off a set of written rules. I was inspired by the meticulous geometric rules that are the basis of Islamic Art but wanted to allow for some drift. I then tested those rules on a group of 4 individuals who had several tasks to do. Finally, I transformed the design into a 3D Styrofoam structure which I created using Rhino modeled laser cut acrylic stencils to aid my wirecutting. Skills: Rhino CAD, Wire cutting, Lasercutting
Final iteration of rules with intended results
Test group piece following rules without further guidance
Time Lapse of Final Iteration
3D Model in Rhino
3D Styrofoam Model
